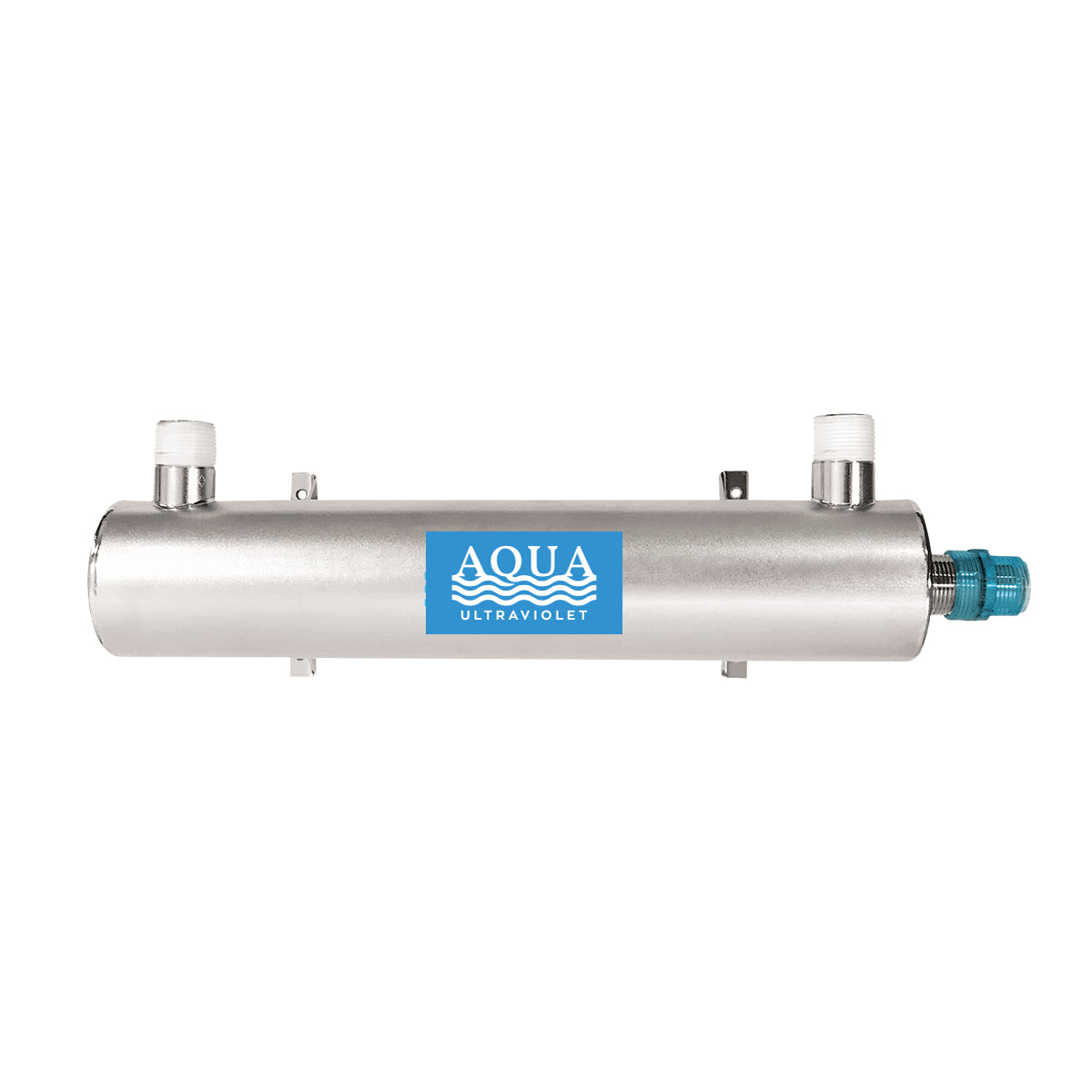

Classic UV 25 Watt Stainless Steel Series Unit

Main info

Available Classic UV 25 Watt Stainless Steel Series Unit:

(Choose an option from drop-down menu)

(PN: A00411) Stainless Steel, 25 Watt Unit, 3/4" Inlet/Outlet, 120V/60Hz

(PN: A00413) Stainless Steel, 25 Watt Unit, 1" Inlet/Outlet, 120V/60Hz
(PN: A00417) Stainless Steel, 25 Watt Unit, 2" Inlet/Outlet, 120V/60Hz

Shop Aqua Ultraviolet for all your Classic Series UV Sterilizer needs!

Quantity

$1,190.08

Sale Sold out

SKU: 617750-00413-6

Specifications	Dimensions for Unit: 19-3/8” x 4-1/2” x 6-1/4” Dimensions for Unit with Wiper: 21-3/8” x 5” x 6-1/4” Wiper Clearance: 8"
Number of Lamps	1
120 Volt Amp Draw	0.48
Water Sterilization Measurements	Freshwater: 500 - 1,200 Gallons
Recommended Flow Rate for UV Dosages	at 30,000 µw/cm2 (EOL) GPH: 1,200 (Max Flow Rate) at 45,000 µw/cm2 (EOL) GPH: 800 at 60,000 µw/cm2 (EOL) GPH: 600 at 75,000 µw/cm2 (EOL) GPH: 480 at 90,000 µw/cm2 (EOL) GPH: 400 (Min Flow Rate)
Information for Reef Tanks	A UV rated in the 30,000 or 45,000 µw/cm2 (EOL) is ideal for the reef environment. UV’s used at higher kill rates will destroy the planktonic food supply for the reef.
Information for Marine Fish	(No reef or live rock) A UV rated in the 75,000 or 90,000 µw/cm2 (EOL) will be the most effective at controlling fish disease. All UV dosages are calculated at the end of lamp life (14 months).
