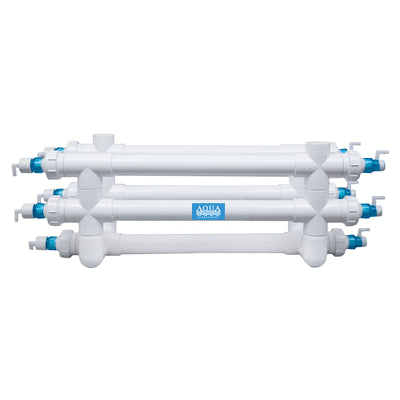

Ozone/UV 200 Watt Unit

Main info

Aqua Ultraviolet's Ozone/UV 200-Watt Units contain five lamps for top-of-the-line water sterilization for both freshwater and saltwater tanks. This unit can sterilize up to 13,000 gallons of freshwater and 1,500 gallons of saltwater, making for a heavy-duty system to keep your aquaculture units clean.

Quantity

$3,502.40

Sale Sold out

SKU: 617750-00228-6

View full details

Available Ozone/UV 200-Watt Series Units:

(Choose an option from drop-down menu)

Ozone/UV 200 Watt Unit
(PN: A00228) Ozone, 200-Watt Unit, 2″ Inlet/Outlet, White, NEMA Transformer, 120V/60Hz

Shop Aqua Ultraviolet for all your Ozone Inline UV Sterilizer needs!

Specifications	Dimensions: 40-7/8” x 14” x 17-1/2”
Number of Lamps	5
120 Volt Amp Draw	2.18
Water Sterilization Measurements	Freshwater: 8,500 - 13,000 Gallons Saltwater: 1,500 Gallons
Recommended Flow Rate for UV Dosages	at 30,000 µw/cm2 (EOL) GPH: 6,600 (Max Flow Rate) at 45,000 µw/cm2 (EOL) GPH: 4,400 at 60,000 µw/cm2 (EOL) GPH: 3,300 at 75,000 µw/cm2 (EOL) GPH: 2,640 at 90,000 µw/cm2 (EOL) GPH: 2,200 (Min Flow Rate)
Information for Reef Tanks	A UV rated in the 30,000 or 45,000 µw/cm2 (EOL) is ideal for the reef environment. UV’s used at higher kill rates will destroy the planktonic food supply for the reef.
Information for Marine Fish	(No reef or live rock) A UV rated in the 75,000 or 90,000 µw/cm2 (EOL) will be the most effective at controlling fish disease. All UV dosages are calculated at the end of lamp life (14 months).
Grams PD	120
