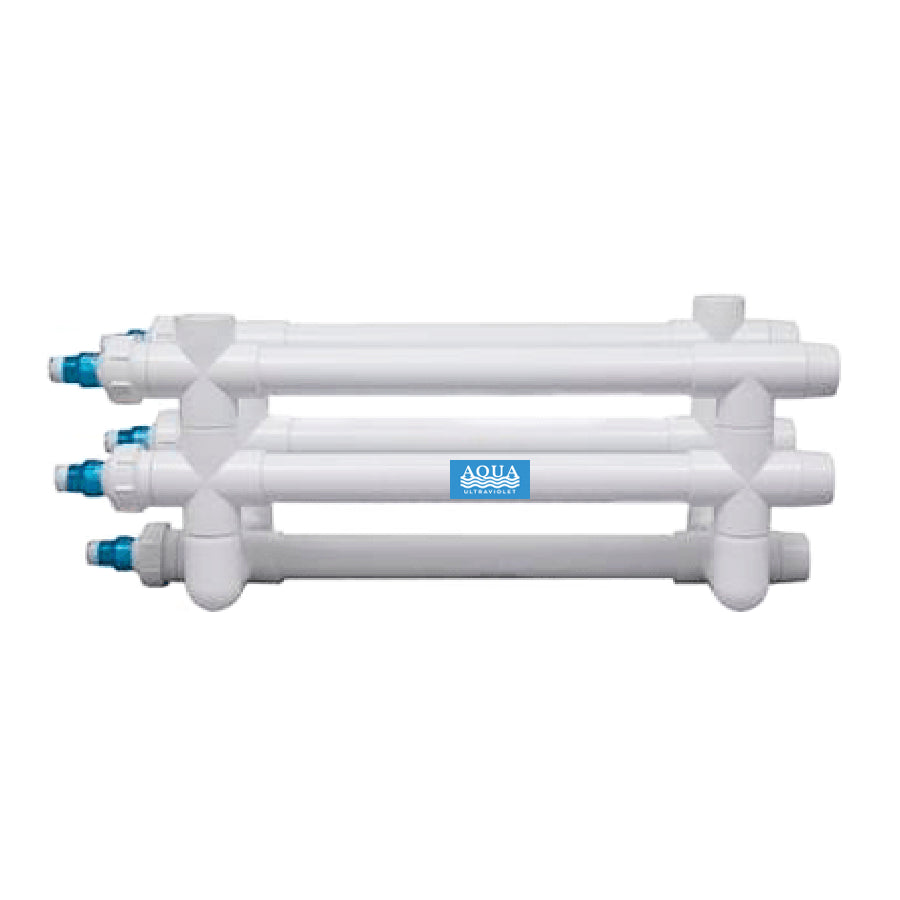

Classic UV 200 Watt Series Units

Classic UV 200 Watt Series Units

$3,403.50 - $3,624.15
Main info

Available Classic UV 200 Watt Series Units:

(Choose an option from drop-down menu)

Classic 200 Watt Unit
(PN: A00200) Classic, 200 Watt Unit, 2" Inlet/Outlet, White, NEMA Transformer, 120V/60Hz
(PN: A00202) Classic, 200 Watt Unit, 2" Inlet/Outlet, White, Wiper*, NEMA Transformer, 120V/60Hz

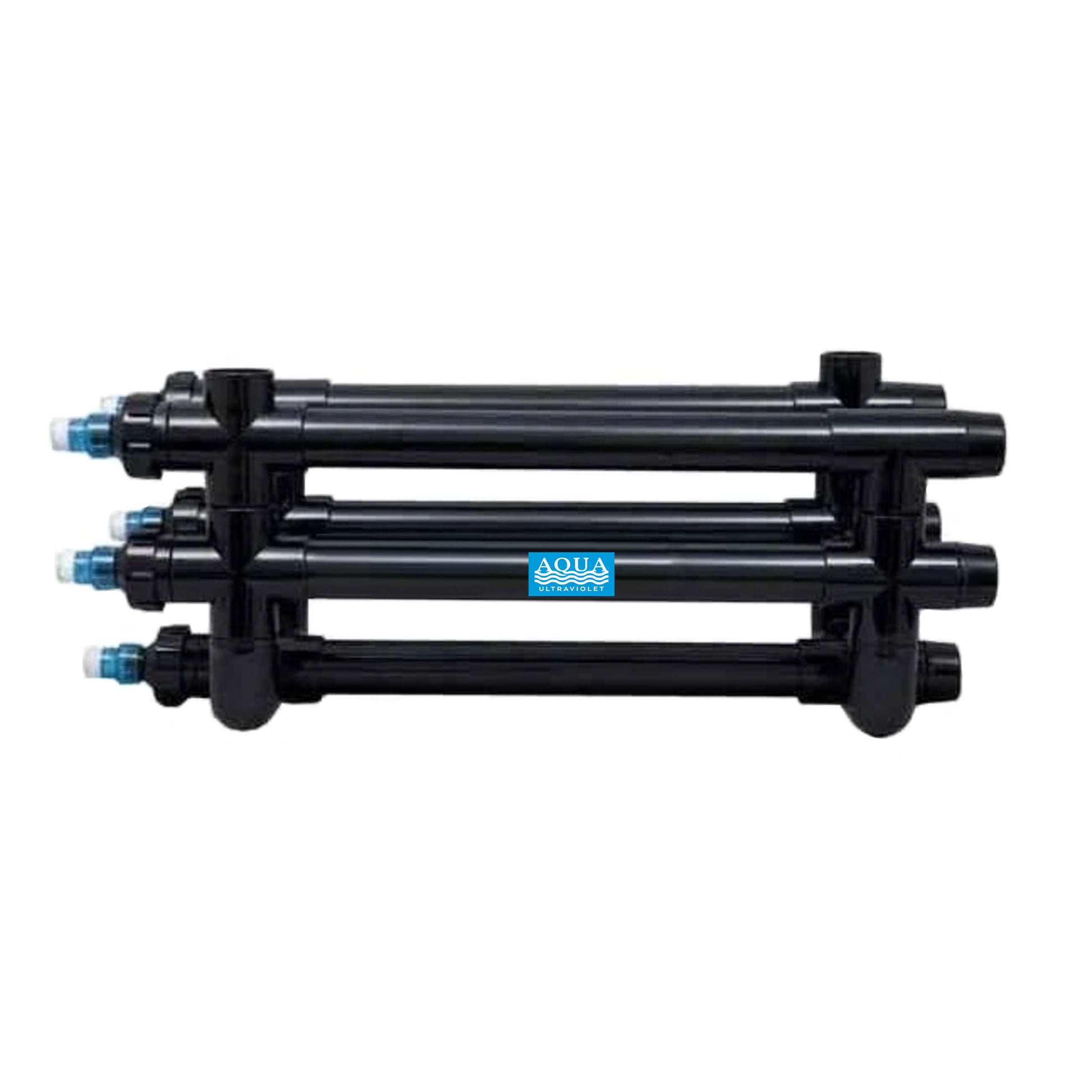

(PN: A00203) Classic, 200 Watt Unit, 2" Inlet/Outlet, Black, NEMA Transformer, 120V/60Hz
(PN: A00204) Classic, 200 Watt Unit, 2" Inlet/Outlet, Black, Wiper*, NEMA Transformer, 120V/60Hz

*Aqua Ultraviolet does not recommend utilizing Wipers with Salt Water and if utilized in this manner will void warranty on the Wiper parts.

Shop Aqua Ultraviolet for all your Classic Series UV Sterilizer needs!

$3,403.50
$3,403.50
Sale Sold out

SKU: 617750-00200-2 (Classic 200 Watt Unit)

View full details

  • Available Classic UV 200 Watt Series Units:

    (Choose an option from drop-down menu)

    Classic 200 Watt Unit
    (PN: A00200) Classic, 200 Watt Unit, 2" Inlet/Outlet, White, NEMA Transformer, 120V/60Hz
    (PN: A00202) Classic, 200 Watt Unit, 2" Inlet/Outlet, White, Wiper*, NEMA Transformer, 120V/60Hz
    (PN: A00203) Classic, 200 Watt Unit, 2" Inlet/Outlet, Black, NEMA Transformer, 120V/60Hz
    (PN: A00204) Classic, 200 Watt Unit, 2" Inlet/Outlet, Black, Wiper*, NEMA Transformer, 120V/60Hz

    *Aqua Ultraviolet does not recommend utilizing Wipers with Salt Water and if utilized in this manner will void warranty on the Wiper parts.

    Shop Aqua Ultraviolet for all your Classic Series UV Sterilizer needs!

  • Specifications Dimensions for 2" Unit: 36-7/8” x 8-5/8” x 22-1/2”
    Dimensions for 2" Unit with Wiper: 38-7/8” x 8-5/8” x 22-1/2”
    Wiper Clearance: 17"
    Number of Lamps 5
    120 Volt Amp Draw 2.18
    Water Sterilization Measurements Freshwater: 8,500 - 13,000 Gallons
    Saltwater: 1,500 Gallons
    Recommended Flow Rate for UV Dosages at 30,000 µw/cm2 (EOL) GPH: 6,600 (Max Flow Rate)
    at 45,000 µw/cm2 (EOL) GPH: 4,400
    at 60,000 µw/cm2 (EOL) GPH: 3,300
    at 75,000 µw/cm2 (EOL) GPH: 2,640
    at 90,000 µw/cm2 (EOL) GPH: 2,200 (Min Flow Rate)
    Information for Reef Tanks A UV rated in the 30,000 or 45,000 µw/cm2 (EOL) is ideal for the reef environment. UV’s used at higher kill rates will destroy the planktonic food supply for the reef.
    Information for Marine Fish (No reef or live rock) A UV rated in the 75,000 or 90,000 µw/cm2 (EOL) will be the most effective at controlling fish disease. All UV dosages are calculated at the end of lamp life (14 months).
    Disclaimer *Aqua Ultraviolet does not recommend utilizing Wipers with Salt Water and if utilized in this manner will void warranty on the Wiper parts.
