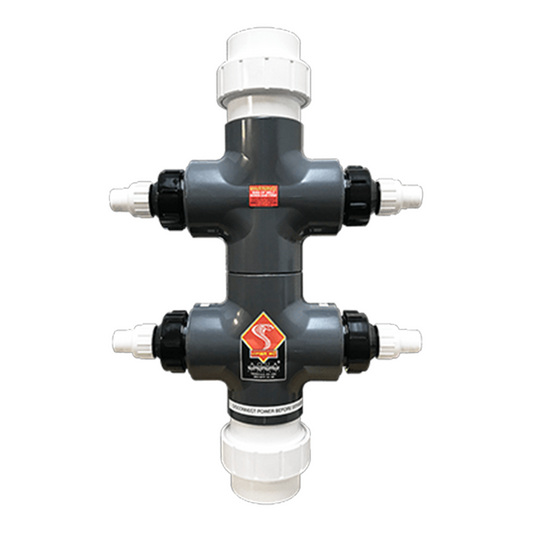

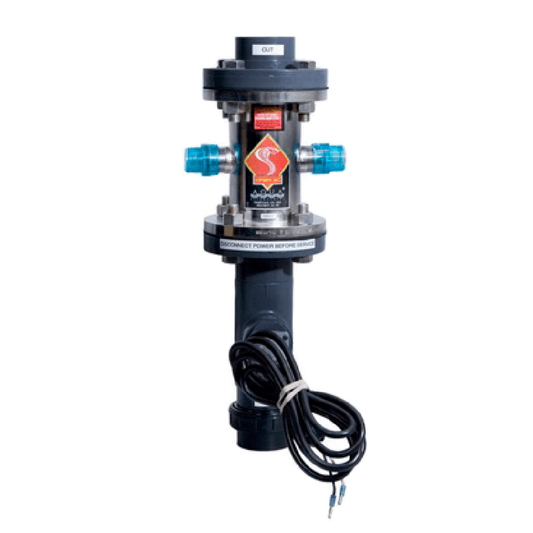

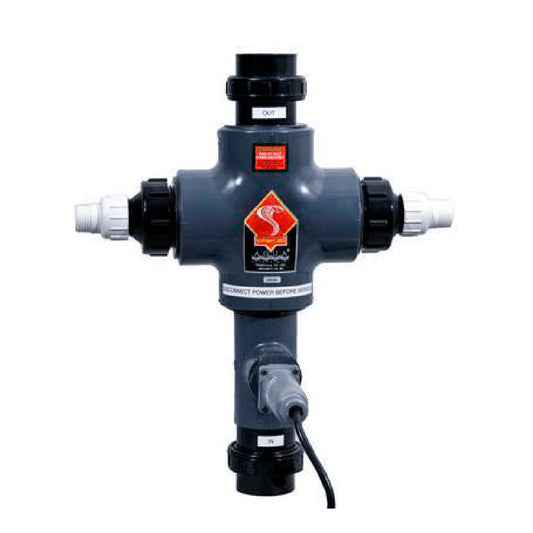

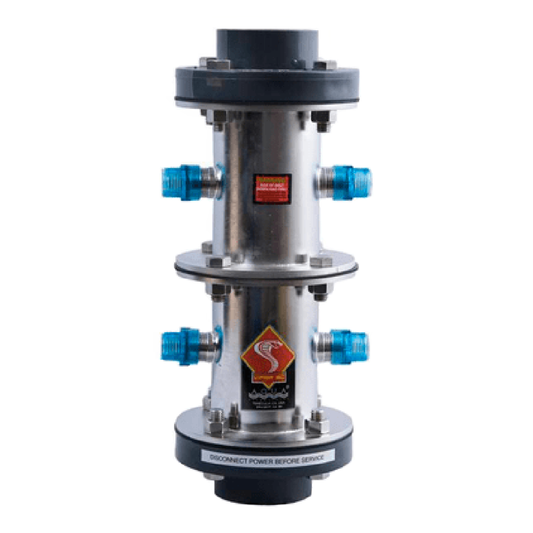

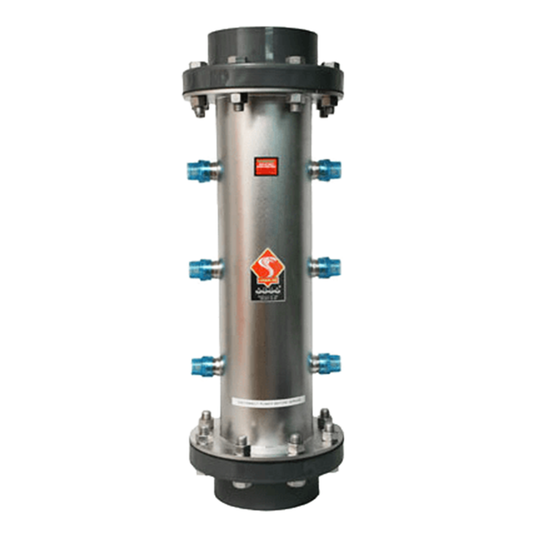

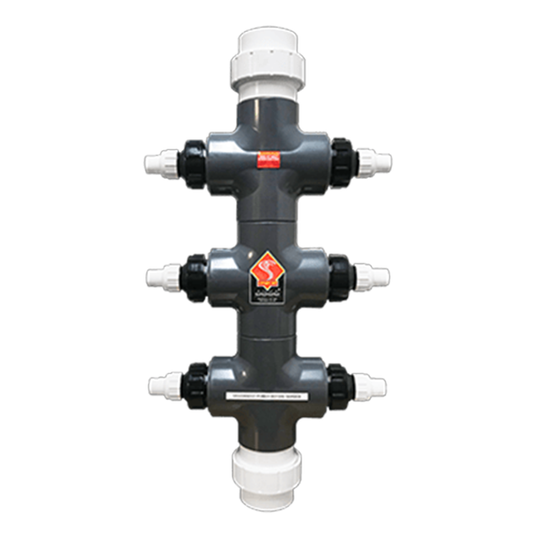

Viper Series – The Viper Series Sterilizers are a perfect chemical-free UV light water treatment solution for professional applications. UV Sterilization is versatile technology used for disinfecting water, other opaque liquids, hard surfaces and air. Using the same germicidal rays as the sun, but hundreds of times stronger, ultraviolet water filters offer a reliable, cost effective, environmentally friendly alternative to chemicals and their resulting bi-products.

UV Sterilization is a purely physical process so it doesn’t alter water’s chemistry, taste, smell or pH.

The Viper Series UV are ideal for large commercial or residential ponds, aquariums, and water features. The specially designed lamps disinfect faster and have greater cell penetration capability. The compact body design of the ultraviolet water filters have a small footprint making it easy to handle, install and maintain. Vipers are engineered to accommodate extreme flow rates. A provided flow switch shuts the unit off if flows fall below 95 GPM.

• Viper Series Brochure

*Aqua Ultraviolet does not recommend utilizing Wipers with Salt Water and if utilized in this manner will void warranty on the Wiper parts.

Where do I install my UV?
The best place to install your UV light water treatment Viper SL is after the filter and lower than the return water line. If an
after the filter installation is not feasible, your sterilizer can be installed before the filter, but
consideration must be given to the total dissolved solids in the water that may inhibit UV
transmission.

Do I have to turn my UV off when I clean my filter?
Yes, the Viper SL Units are completely water cooled, and should not be run without water or
when water is at a stand still for any length of time. This may cause extensive, irreversible
damage to the ultraviolet water filter and is not covered under warranty.

Do I install my UV vertically or horizontally?
The Viper SL Ultraviolet Sterilizer must be installed horizontally.

What should my flow rate be on my pond or fresh water aquarium?
The optimum flow rate for UV light water treatment on your pond or fresh water aquarium is to turn over the volume of water
once every hour or a minimum of once every one and one half hours. Please also note the
minimum flow rate requirement of 95 gallons per minute.

What should my flow rate be on my salt water aquarium?
Your minimum flow rate should be 3 to 5 times the volume of water per hour through your ultraviolet water filter. Please also note the minimum flow rate requirement of 95 gallons per minute.

Should I bypass part of my water through the UV and the rest back to the water supply?
No. Our UV’s are specifically designed to handle high flow rates for easier installation and UV light water treatment.

Is this unit submersible?
Not this specific series.

Does the UV light have any residual effect to the fish?
UV only effects what passes through the chamber. There is no residual effect from UV light.

Does the UV kill good bacteria?
Ultraviolet light does not discriminate about what it destroys. If good bacteria passes by the light
it will be destroyed. Beneficial bacteria are colonized in your filter and along the sides and
bottom of your pond. The only time these will be affected is if they become free floating. All the bacteria in the ultraviolet water filter are safe because UV has no residual.

How often should I change my lamp?
The lamp, quartz sleeve and seals should be replaced after 14 months of continuous use.

Are all UV lamps of the same length the same wattage?
No. The power output of the lamp has nothing to do with its length; other factors like the amount
of mercury it contains and the power supply that feeds the lamp govern this and may affect the UV light water treatment.

• Looking for a replacement part number? Take a look at the  Viper Series – Parts List

• • Viper Series – Clear Quartz Cap for Stainless Steel Units, Stainless Steel Viper, Plastic Viper with Wiper
  • Viper Series – Bushing / O-Ring for Q.S. for SL, Viper and Stainless Steel Units
  • Viper Series –  Rubber Seal for Plastic Viper 4” and Above Units
  • EZ Twist Top O-Ring (PN: A40014)
  • Viper Series – Quartz Cap, for 2”, 3” Viper Units, White
  • Viper Series – Quartz Cap for 4” and above Viper Units, Grey
  • Viper Series – Rubber Seal for SL and 2”, 3” Plastic Viper Units
  • Viper Series – EZ Twist Top, Viper Black w/ O-Ring (PN: A40174)
  • Viper Series – Stainless Steel Unit Lamp Kits
  • Viper Series – Plastic Unit Lamp Kits
  • Viper Series –  Transformer 220V/60Hz for Stainless Steel Replacements
  • Viper Series –  Raw Transformers 220V/60Hz
  • Viper Series –  NEMA Transformers for Plastic Units 220V/60Hz
  • Viper Series –  NEMA Transformers 120V/60Hz​
  • Viper Series –  Step Transformer For 120V Conversion 50Hz of 60Hz​Transformer

• Viper Series  – Digital Instruction Manual
